Axial Fan

UF25GCM Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic PBT PC,nylon or metal
Bearing System: Ball bearing or sleeve bearing
Motor: Shaded pole or capacitor start-run

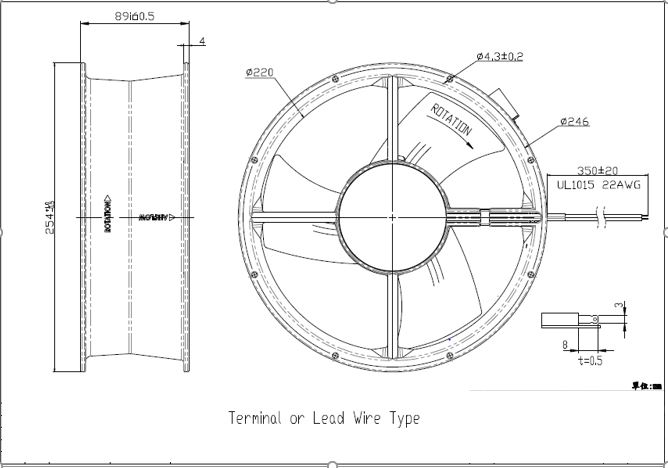

Connection: Lead wire or termnal type
Protection: Impedance-Protected or Thermally-Protected
Dielectric withstand voltage: Above 10MΩ, DC500V
Life Expectancy: Ball bearing:Over 40,000 hr.(at 40°C)
Sleeve bearing:Over 15,000 hr.(at 40°C)
Safety Approval: CUL, CE, TUV, either UL or ETL
Description of Model No.
UF 12 A (R) 11 B T H N
1 2 3 4 5 6 7 8 9


Get Latest Price
UF25GCM11-H UF25GCM23-H
Rated Voltage 115V 230V
Frequency 50/60 Hz 50/60 Hz
Input Power 53/67 W 53/67 W
Rated Current 0.46/0.58 A 0.23/0.29 A
Locked Current 0.61/0.63 A 0.30/0.31 A
Speed 2200/2150 RPM 2200/2150 RPM
Maximum Air Flow 18.3/17.8 m3/min. 18.3/17.8 m3/min.
Maximum Air Flow 645/630 CFM 645/630 CFM
Maximum Pressure 11.7/9.9 mmH2O 10.9/9.4 mmH2O
Maximum Pressure 0.46/0.39 InchH2O 0.46/0.37 InchH2O
Noise 62/62 dB 62/62 dB
Weights 2.7 K 2.7 Kg
SAFETY APPROVAL
