UFT200BMB Series

UFT200BMB Series
UFT200BMB Series
EC fan

UFT200BMB Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic or steel
Bearing System: Ball bearing
Motor: Brushless DC motor
Protection: Electronically-Protected
Insulation Resistance: Above 10MΩ, DC500V
Dielectric withstand voltage: AC 1,500V (50/60Hz) one minute
Life Expectancy: Ball bearing: Over 50,000 hr. (at 40℃)
Safety Approval: UL .TUV. CE .

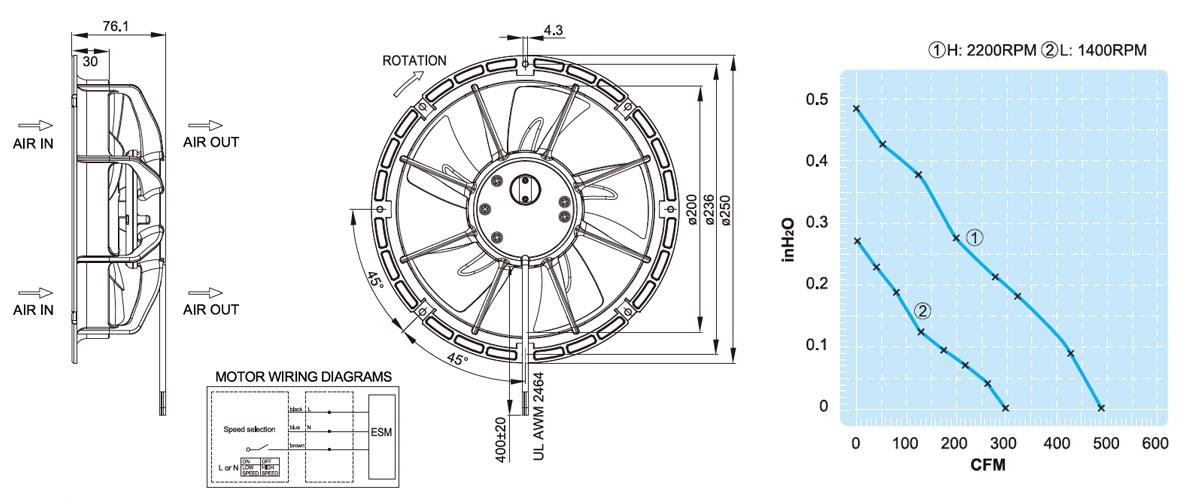

Description of Model No.
UF 220 A P A 11 H1 C 2 A
1 2 3 4 5 6 7 8 9 10





Get Latest Price
UFT200BMB11H1D4A UFT200BMB11H1D4A UFT200BMB23H1D4A UFT200BMB23H1D4A
Rated Voltage 115 V 115 V 230 V 230 V
Frequency 50/60 50/60 50/60 Hz 50/60 Hz
Input Power 26 W 8.1 W 27.0 W 8.5 W
Rated Current 0.40 A 0.13 A 0.24A 0.08 A
Locked Current 0.1A 0.1A 0.1A 0.1A
Speed 2200 RPM 1400 RPM 2200 RPM 1400 RPM
Maximum Air Flow 13.0 m3/min. 8.2 m3/min. 13.0 m3/min. 8.2 m3/min.
Maximum Air Flow 460 CFM 290 CFM 460 CFM 290 CFM
Maximum Pressure 11.7 mmH2O 7.1 mmH2O 11.7 mmH2O 7.1 mmH2O
Maximum Pressure 0.46 InchH2O 0.28 InchH2O 0.46 InchH2O 0.28 InchH2O
Noise 55 dB 44 dB 55 dB 44 dB
Weights 1 kg 1 kg 1 kg 1 kg
SAFETY APPROVAL
