AC&EC cooling fan application: commercial oven, baking equipment

Housewives spend time in the kitchen almost every day, however, it could sometimes be a risky place if not in proper use. With good ventilation and heat dissipation design of kitchen equipment, some possible accidents can be avoided, while, these two points are usually missed out by the public.

When cooking, the kitchen equipment will generate heat and smoke at the same time. Understanding how kitchen equipment dissipates heat effectively, dissipates excess heat, and prevents carbon monoxide from accumulating is important to minimize abnormalities and accidental risks.

Typically, conventional ovens do not have a fan installed to circulate the air, instead the hot air from the conventional oven circulates naturally through the heating elements at the bottom of the unit, resulting in slower heating, the closer to the heat source, the higher the temperature, so when different dishes are made simultaneously, the internal temperature is not balanced. In addition, it will also increase the cooking time and reduce the efficiency.



On the market there is another type of oven - convection oven, which uses the installation of EC energy-saving cooling fans and high-temperature-resistant fans to make the hot air circulate more evenly to quickly generate convection, so that the food can be heated faster and more evenly, shortening the baking time and cooling down the inside electronic components at the same time to reach the effect of energy saving and power saving.



Models for commercial oven, baking equipment

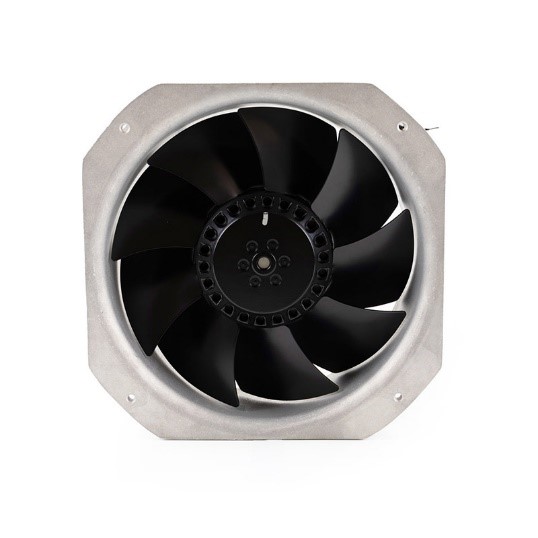

The functional specifications of AC fan UF-200BMB are as follows.

防爆風扇、鄧白氏、D&B、 ac fan、ec fan、axial fan、centrifugal fan、Ventilation、Compact Fan、Ventilador compacto、ventilator de caz、Kompaktný ventilator、Kompaktowy wentylator、Ventiladores、Microventilador、Ventilátory EC、AC-Lüfter、Wentylatory AC、Axiálny ventilator、axiálnych ventilátorov、sunon、sanyo denki、EBM、ORIX

Specification

200BMB23H1C2A

Size

225*225*80 mm

Rated Voltage

230V

Frequency

50/60 Hz

Input Power

74 /80 W

Rated Current

0.29/0.35 A

Locked Current

0.50 A

Speed

2550/2800 RPM

Maximum Air Flow

15/17 m3/min.

Maximum Air Flow

530/600 CFM

Maximum Pressure

17/14 mmH2O

Maximum Pressure

0.67/0.55 InchH2O

Noise

59/61 dB

Weights

 2.1kg

Certification

UL、TUV、ATEX



High-temperature resistant fan models.

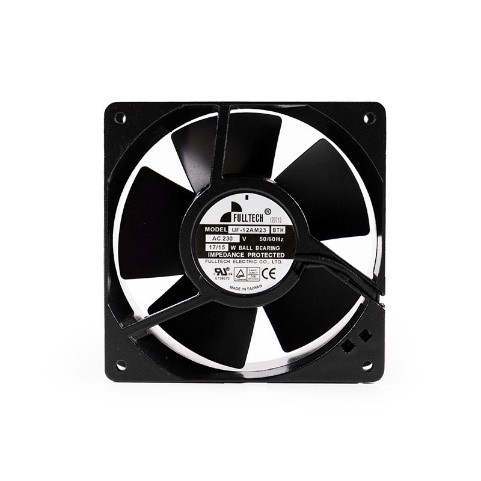

The functional specifications of AC fan model UF-12AM are as follows.

There is also an option for Class F high-temperature resistance specification.

防爆風扇、鄧白氏、D&B、 ac fan、ec fan、axial fan、centrifugal fan、Ventilation、Compact Fan、Ventilador compacto、ventilator de caz、Kompaktný ventilator、Kompaktowy wentylator、Ventiladores、Microventilador、Ventilátory EC、AC-Lüfter、Wentylatory AC、Axiálny ventilator、axiálnych ventilátorov、sunon、sanyo denki、EBM、ORIX

Specification

12AM23BTH

Size

120*120*38 mm

Rated Voltage

230V

Frequency

50/60 Hz

Input Power

17 /15 W

Rated Current

0.10/0.09 A

Locked Current

0.13/0.12 A

Speed

2700/3100 RPM

Maximum Air Flow

2.5/2.9 m3/min.

Maximum Air Flow

89/103 CFM

Maximum Pressure

6.5/6.0 mmH2O

Maximum Pressure

0.26/0.24 InchH2O

Noise

42/46 dB

Weights

 0.55kg

Certification

UL、TUV、ATEX

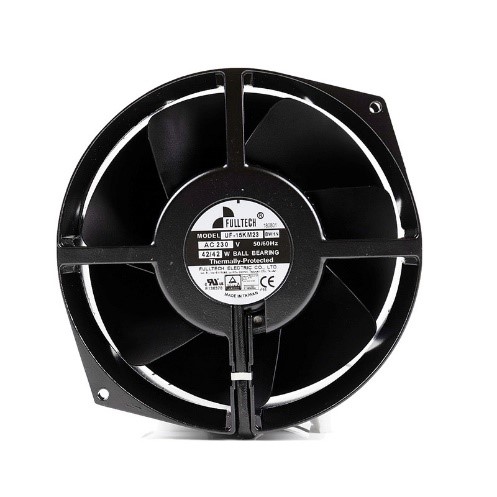

The functional specifications of AC fan model UF-15KM are as follows.

There is also an option for Class F high-temperature resistance specification.

防爆風扇、鄧白氏、D&B、 ac fan、ec fan、axial fan、centrifugal fan、Ventilation、Compact Fan、Ventilador compacto、ventilator de caz、Kompaktný ventilator、Kompaktowy wentylator、Ventiladores、Microventilador、Ventilátory EC、AC-Lüfter、Wentylatory AC、Axiálny ventilator、axiálnych ventilátorov、sunon、sanyo denki、EBM、ORIX



Specification

15KM23BTH

Size

172*150*55 mm

Rated Voltage

230V

Frequency

50/60 Hz

Input Power

42 W

Rated Current

0.25/0.23 A

Locked Current

0.43/0.37 A

Speed

2800/3250 RPM

Maximum Air Flow

5.5/6.5 m3/min.

Maximum Air Flow

195/230 CFM

Maximum Pressure

14/16 mmH2O

Maximum Pressure

0.55/0.63 InchH2O

Noise

49/53 dB

Weights

 1.1kg

Certification

UL、TUV、ATEX



EC explosion-proof energy-saving fan models.

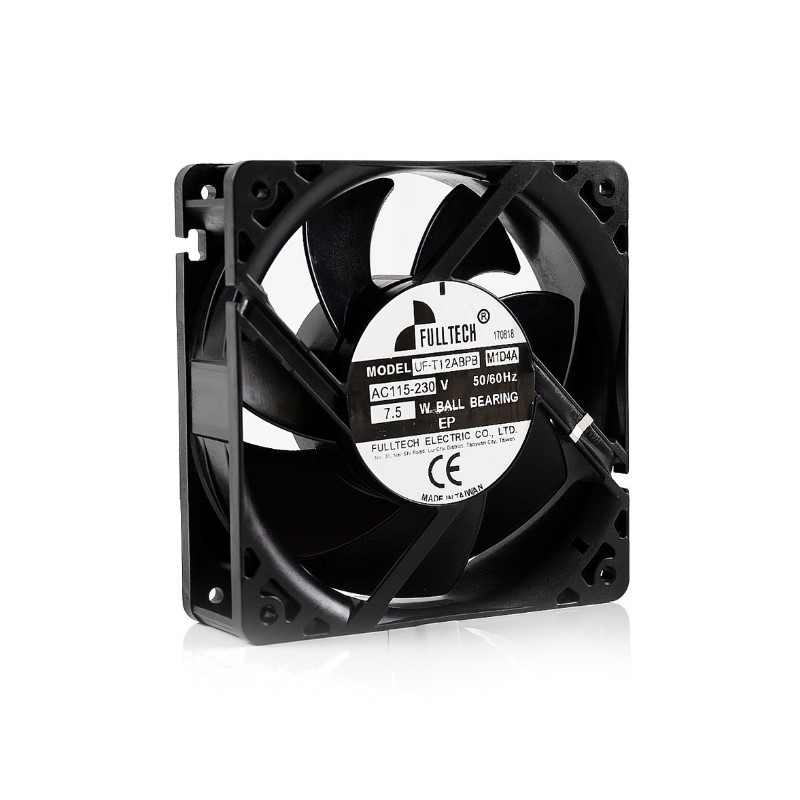

EC fan UF-T12A features and specifications are as follows,and it can be additionally equipped with PWM (speed control) and RD (warning detection) functions.



防爆風扇、鄧白氏、D&B、 ac fan、ec fan、axial fan、centrifugal fan、Ventilation、Compact Fan、Ventilador compacto、ventilator de caz、Kompaktný ventilator、Kompaktowy wentylator、Ventiladores、Microventilador、Ventilátory EC、AC-Lüfter、Wentylatory AC、Axiálny ventilator、axiálnych ventilátorov、sunon、sanyo denki、EBM、ORIX

Specification

T12ABPB0AM1D4AN

Size

120*120*38 mm

Rated Voltage

115~230V

Frequency

50/60 Hz

Input Power

4.9(115V) /5.2(230V) W

Rated Current

0.08(115V)/0.06(230V) A

Locked Current

0.09(115V)/0.06(230V) A

Speed

3200 RPM

Maximum Air Flow

3.0 m3/min.

Maximum Air Flow

106 CFM

Maximum Pressure

8.6 mmH2O

Maximum Pressure

0.34 InchH2O

Noise

43 dB

Weights

0.29 kg

Certification

UL、TUV、ATEX

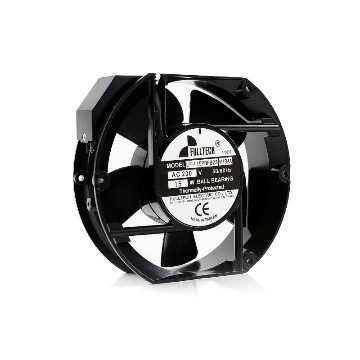

EC fan UF-T15P features and specifications are as follows,and it can be additionally equipped with PWM (speed control) and RD (warning detection) functions.

防爆風扇、鄧白氏、D&B、 ac fan、ec fan、axial fan、centrifugal fan、Ventilation、Compact Fan、Ventilador compacto、ventilator de caz、Kompaktný ventilator、Kompaktowy wentylator、Ventiladores、Microventilador、Ventilátory EC、AC-Lüfter、Wentylatory AC、Axiálny ventilator、axiálnych ventilátorov、sunon、sanyo denki、EBM、ORIX



pecification

T15PBPB0AM1D4AN

Size

172*150*51 mm

Rated Voltage

115~230V

Frequency

50/60 Hz

Input Power

17(115VAC) /17(230VAC) W

Rated Current

0.23(115VAC) 0.135(230VAC) A

Locked Current

0.23(115VAC) 0.14(230VAC) A

Speed

3000 RPM

Maximum Air Flow

6.2 m3/min

Maximum Air Flow

220 CFM

Maximum Pressure

17.8 mmH2O

Maximum Pressure

0.7 InchH2O

Noise

44 dB

Weights

0.7 kg

Certification

UL、TUV、ATEX



Fulltech can meet different customer needs and market requirements

Our all-metal AC fan can stand to be used in high-temperature environments and still function well in ovens and other high temps. equipment,

The fan blades are also made of high-temperature resistant metal materials,so there’s no need to worry about causing cracks on the surface due to high temperature, which is one of the potential risks of using plastic blades.



In order to keep up with the current trend, Fulltech has launched a series of EC energy-saving and explosion-proof fans, which can greatly reduce the risk in the environment of flammable and fire gases. In addition, not only do our EC fans have the characteristics of low-temperature rise but also high air volume by using high-quality Japanese-made bearings to extend the life of the fan, please contact us if you are interested!
