特殊客製化服務

專業、細心、安心

特殊客製化服務
EC節能風扇

ESG新時代浪潮下,設備中必備節能高效的風扇,可另訂製PWM調速及警報功能。

耐高溫風扇

耐高溫風扇從70°C到100°C皆有規格供您挑選使用,讓您不再為設備高溫導致風扇內部毀損停擺而煩惱。

防鹽霧風扇

特殊防鏽蝕鋼珠軸承,讓您的風扇長時間在海上海邊等較易鏽蝕環境下依然能運轉。

ATEX防爆風扇

可燃氣體絕對是工業設備中最擔心的一點,因此需選用有國際認證的ATEX防爆風扇既能排風散熱還能防止設備爆炸風險。

特殊客製化服務

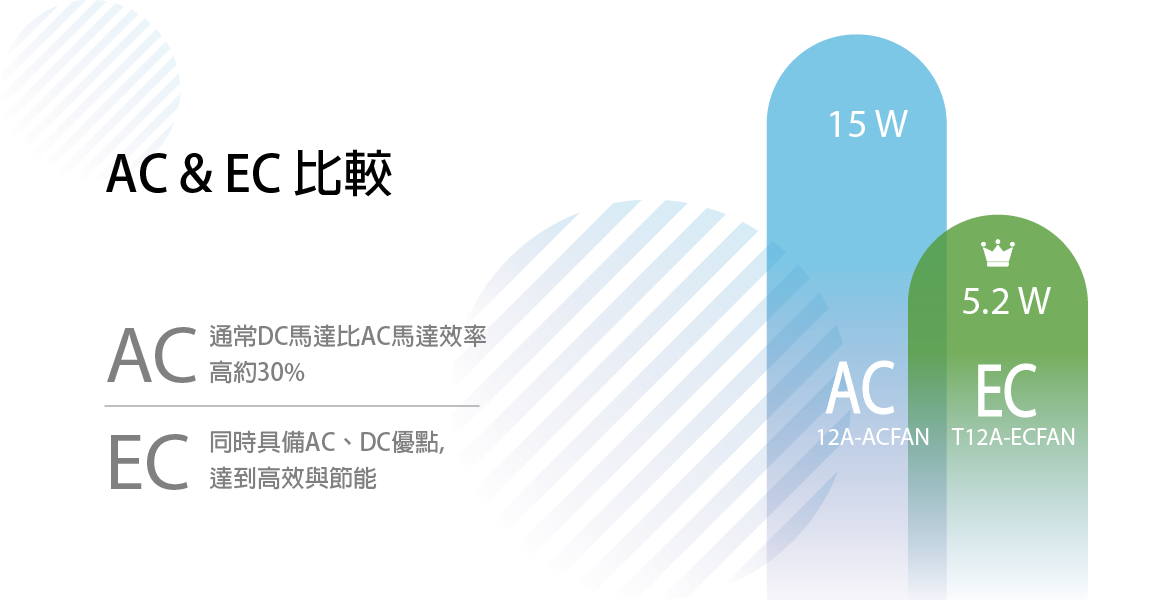

AC&EC比較表
AC通常DC馬達比AC馬達效率高約30%,EC同時具備AC、DC優點,達到高效與節能
差異點 AC 風扇 EC風扇
馬達運轉方式 感應馬達則是藉由AC輸入電壓來供電,並通過轉子上的感應電流來產生磁場轉動,但AC馬達轉速受電源頻率固定,馬達最高轉速僅達3600rpm,且AC馬達的效能比DC馬達低 由電子驅動板控制的無刷直流馬達,EC馬達的轉子包含永久性磁鐵,而定子則有一組銅線圈,馬達的轉動透過電路板切換銅線圈中的相位來保持馬達持續轉動.
效能 通常DC馬達比AC馬達效率高約30% 具備AC、DC優點,達到高效與節能
特點 直接使用交流電啟動馬達較E C風扇耗電 可依客戶需求客製化IP55、IP68防水防塵與 ATEX防爆防護或訂製轉速脈波輸出、PWM調速及報警功能

特殊客製化服務

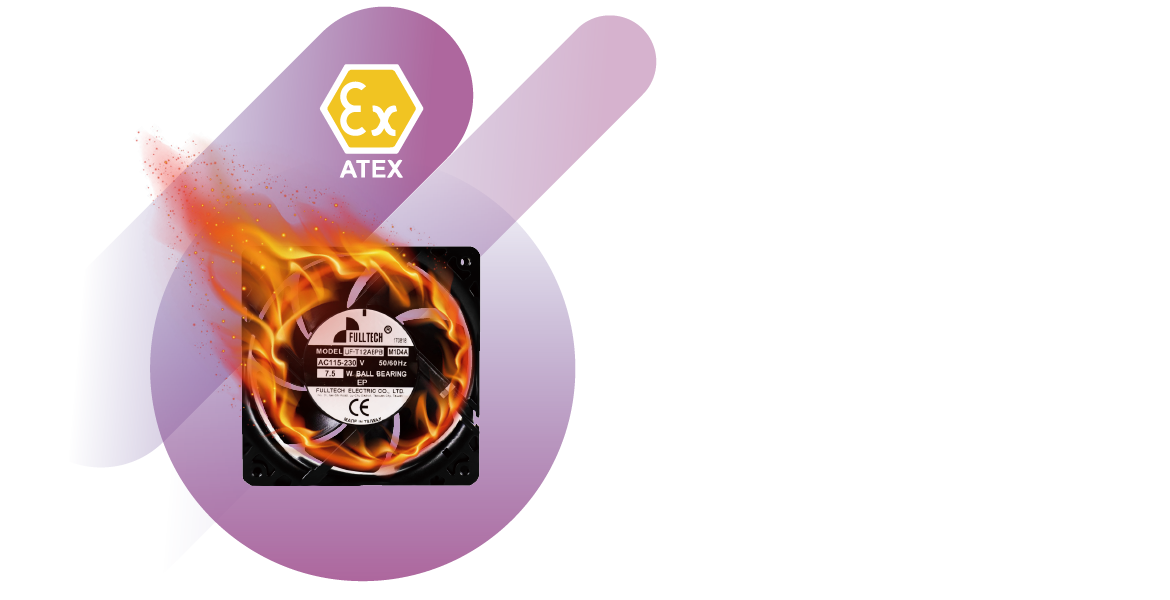

EC 防爆風扇

福佑研發特殊馬達密封技術防止火花產生

防爆風扇可達到P68
防水防塵等級用在有可燃氣體及易燃物之設備内如冷櫃、冰箱。
ATEX model Description Size Safety Approval
T60B BPB0AM1D4AN Axial fan, 230Vac, ball bearing 60x60x25mm, plastic impeller UL.CUL.TUV.ATEX
T92A BPB0AM1D4AN Axial fan, 230Vac, ball bearing 92x92x38mm, plastic impeller UL.CUL.TUV.CE.ATEX
T12A BPB0AM1D4AN Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE.ATEX
T15P BPB0AM1D4AN Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.ATEX
T25G BPB0AL1D8AN Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller UL.CUL.TUV.ATEX
UFT200BPB23H1D4AN Axial fan, 230Vac, ball bearing Ø250x76.1mm, plastic impeller UL.CUL.TUV.ATEX
UFT200BMB23H1D4AN Axial fan, 230Vac, ball bearing Ø250x76.1mm, metal impeller UL.CUL.TUV.ATEX

特殊客製化服務

防水防塵風扇
IP55等級防水防塵風扇
可防止水氣侵入影響風扇壽命,適用於戶外設備或高濕度環境。例如:LED看板、充電站等戶外設備、捕魚船。
Waterproof Model Description Size Safety Approval IP Rate
92A23BWHN Axial fan, 230Vac, ball bearing 92x92x38mm, plastic impeller ETL.TUV.CE IP55
92B23BWHN Axial fan, 230Vac, ball bearing 92x92x25mm, plastic impeller UUL.CUL.TUV.CE IP55
12A23BWHN Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE IP55
12B23BWHN Axial fan, 230Vac, ball bearing 120x120x25mm, plastic impeller UL.CUL.TUV.CE IP55
13A23BWHN Axial fan, 230Vac, ball bearing 127x127x38mm, plastic impeller UL.CUL.TUV.CE IP55
15P23BWHN Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE IP55
15PC23BWHN Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller, capacitor start-run UL.CUL.TUV.CE IP55
15KC23BWHN Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE IP55
15KM23BWHN Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller UL.CUL.TUV.CE IP55
15KMR23BWHN Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller, reverse air flow UL.CUL.TUV.CE IP55
17PC23BTHN Axial fan, 230Vac, ball bearing Ø172x51mm, plastic impeller, capacitor start-run UL.CUL.TUV.CE IP55
25GC23BWHN Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller
UL.CUL.TUV.CE IP55

特殊客製化服務

福佑抗鹽霧風扇(G)IP68+防鹽霧
使用防鏽蝕鋼珠軸承,防依據CNS8886Z8026使用鹽霧測試機做96小時鹽霧測試,鹽霧測試24小時相當自然環境1年時間,可用於海上及海邊設備,可用於高濕度環境。
ANTI SALT/FOG MODEL Description Size Safety Approval IP Rate
60D23BWHG Axial fan, 230Vac, ball bearing 60x60x30mm, plastic impeller UL.CUL.TUV.CE IP68
12A23BTHG Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE IP68
13A23BWHG Axial fan, 230Vac, ball bearing 127x127x38mm, plastic impeller UL.CUL.TUV.CE IP68
15PC23BWHG Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE IP68
15KC23BWHG Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE IP68
25GC23BWHG Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller UL.CUL.TUV.CE IP68

特殊客製化服務

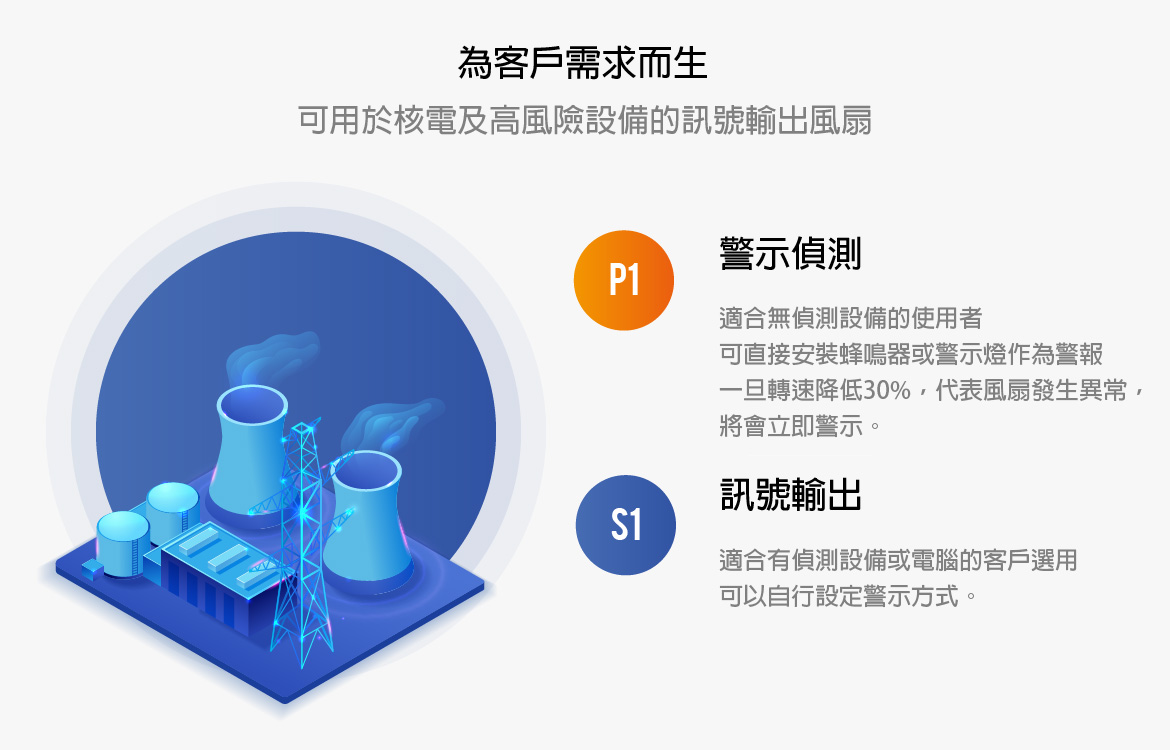

福佑訊號輸出風扇
可用於核電及高風險設備的訊號輸出風扇
Alarm Signal Description Size Safety Approval
12A23BTHP1 Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE
15AC23BTHP1 Axial fan, 230Vac, ball bearing 172x150x38mm, plastic impeller UL.CUL.TUV.CE
15PC23BTHP1 Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE
15KC23BTHP1 Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE
16FC23BTHDP1 Axial fan, 230Vac, ball bearing 160x160x62mm, plastic impeller UL.CUL.TUV.CE
18JC23BTHDP1 Axial fan, 230Vac, ball bearing 180x180x90mm, plastic impeller UL.CUL.TUV.CE
25GCB23BWHP1 Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller UL.CUL.TUV.CE



Alarm Signal Description Size Safety Approval
12A23BTHS1 Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE
12AM23BTHS1 Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE
15AC23BTHS1 Axial fan, 230Vac, ball bearing 172x150x38mm, plastic impeller UL.CUL.TUV.CE
15PC23BWHS1 Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE
15KC23BTHS1 Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE
15KM23BWHS1 Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE
16FC23BTHDS1 Axial fan, 230Vac, ball bearing 160x160x62mm, plastic impeller UL.CUL.TUV.CE
18JC23BTHDS1 Axial fan, 230Vac, ball bearing 180x180x90mm, plastic impeller UL.CUL.TUV.CE
25GC23BTHS1 Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller UL.CUL.TUV.CE

特殊客製化服務

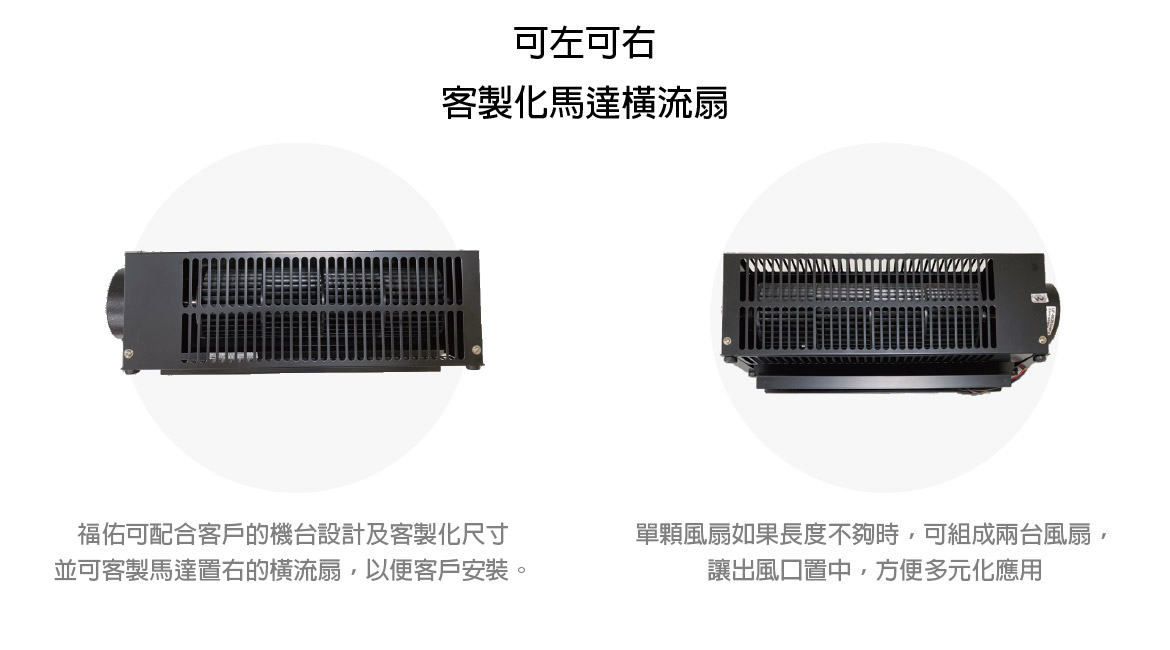

福佑右側馬達橫流扇
Right Side Motor Description Size Safety Approval
6017SBA12MR Cross flow fan, 120Vac, ball bearing 266x100x90mm, aluminum roller CE
9029CBP23HR Cross flow fan, 230Vac, ball bearing 420x150x130mm, plastic roller CE
9060CBP23HR Cross flow fan, 230Vac, ball bearing 740x150x130mm, plastic roller CE

特殊客製化服務

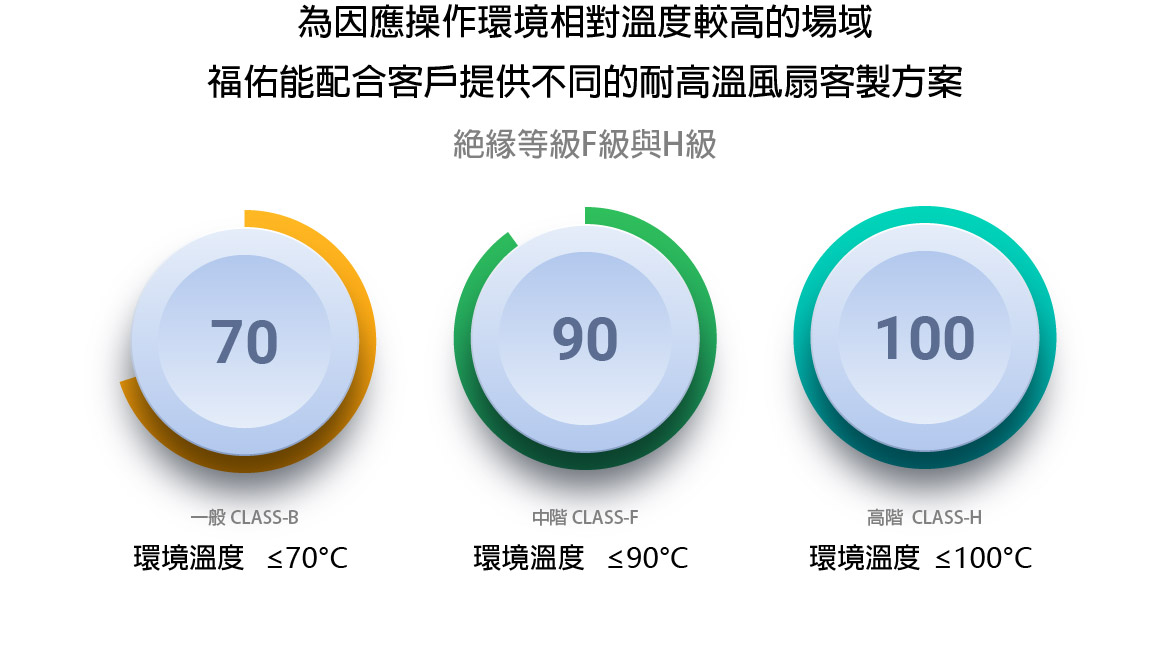

福佑耐高溫風扇
為因應操作環境相對溫度較高的場域,福佑能配合客戶提供不同的耐高溫風扇客製方案
Insluation F class-90 degree Description Size Safety Approval
80AM23BTHF Axial fan, 230Vac, ball bearing 80x80x38mm, metal impeller UL.CUL.TUV.CE
92AM23BTHF Axial fan, 230Vac, ball bearing 92.5x92.5x38mm, metal impeller TUV.CE
12AM23BTHF Axial fan, 230Vac, ball bearing 120x120x38mm, metal impeller UL.CUL.TUV.CE
12AMR23BTHF Axial fan, 230Vac, ball bearing 120x120x38mm, metal impeller, reverse air flow UL.CUL.TUV.CE
15KM23BTHF Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller TUV.CE
15KMR23BTHF Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller, reverse air flow TUV.CE
25GCM23BTHF Axial fan, 230Vac, ball bearing Ø254x89mm, metal impeller UL.CUL.TUV.CE



Insulation H Class-100 degree Description Size Safety Approval
92AM23BTHH Axial fan, 230Vac, ball bearing 92.5x92.5x38mm, metal impeller CE
12AM23BTHH Axial fan, 230Vac, ball bearing 120x120x38mm, metal impeller CE
