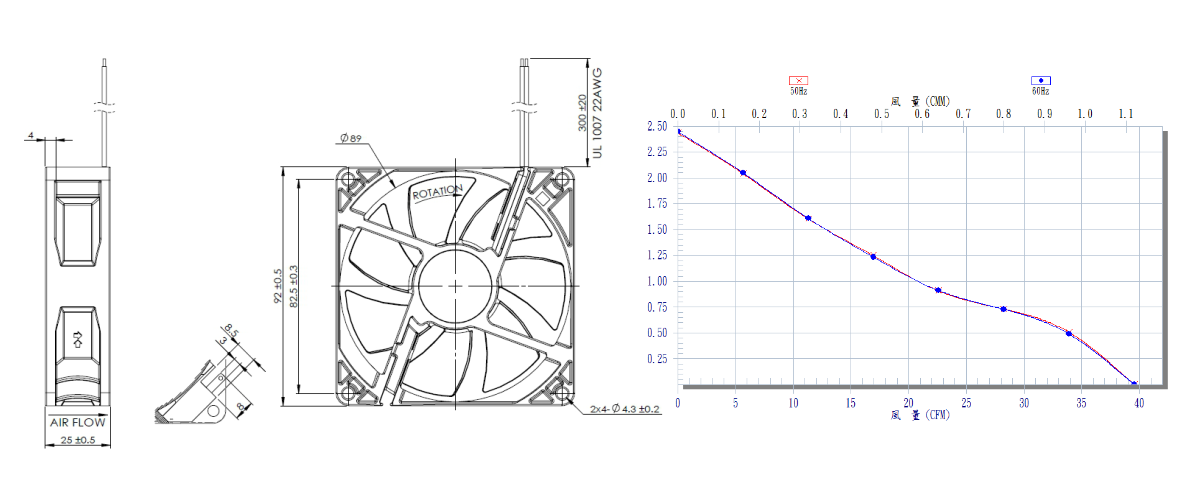

UFT92BBPB Series

UFT92BBPB Series
UFT92BBPB Series
EC fan

UFT92BBPB Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic or steel
Bearing System: Ball bearing
Motor: Brushless DC motor
Protection: Electronically-Protected
Insulation Resistance: Above 10MΩ, DC500V
Dielectric withstand voltage: AC 1,500V (50/60Hz) one minute
Life Expectancy: Ball bearing: Over 50,000 hr. (at 40℃)
Safety Approval: UL .TUV. CE .
Description of Model No.
UF 220 A P A 11 H1 C 2 A
1 2 3 4 5 6 7 8 9 10





Get Latest Price
UFT92BBPB0AM1D4A
Rated Voltage 115~230V
Frequency 50/60 Hz
Input Power 3.0 W
Rated Current 0.057(115VAC) 0.033(230VAC)
Locked Current 0.082(115VAC) 0.038(230VAC)
Speed 2650 RPM
Maximum Air Flow 1.1 m3/min
Maximum Air Flow 39 CFM
Maximum Pressure 2.3 mmH2O
Maximum Pressure 0.09 inchH2O
Noise 34 dB
Weights 0.085kg
SAFETY APPROVAL
