Axial Fan

UF18JC Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic PBT PC,nylon or metal
Bearing System: Ball bearing or sleeve bearing
Motor: Shaded pole or capacitor start-run
Connection: Lead wire or termnal type
Protection: Impedance-Protected or Thermally-Protected
Dielectric withstand voltage: Above 10MΩ, DC500V
Life Expectancy: Ball bearing:Over 40,000 hr.(at 40°C)
Sleeve bearing:Over 15,000 hr.(at 40°C)
Safety Approval: CUL, CE, TUV, either UL or ETL
Description of Model No.
UF 12 A (R) 11 B T H N
1 2 3 4 5 6 7 8 9


Get Latest Price

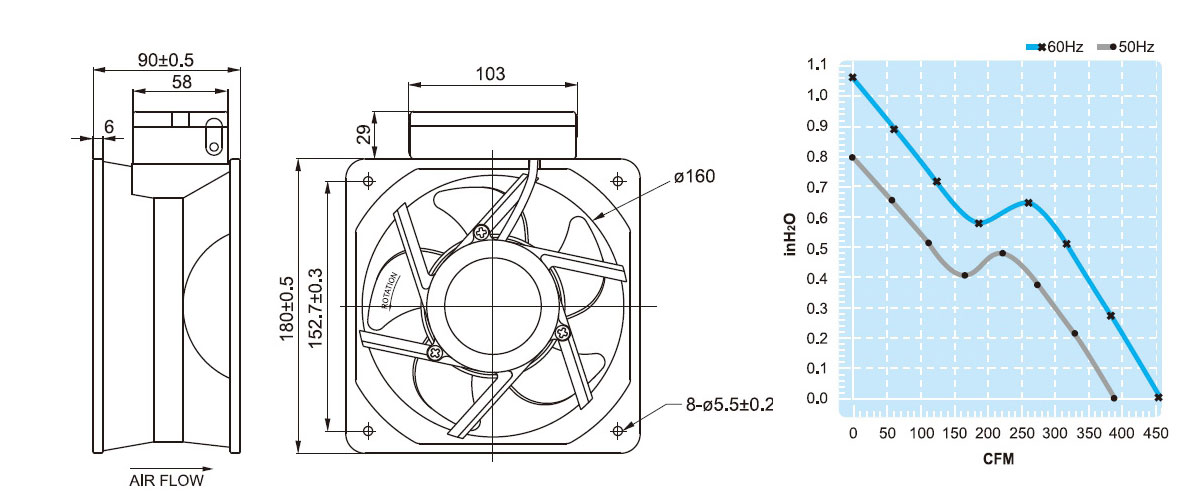

UF18JC11-H UF18JC23-H
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 78/72 W 75/72 W
Rated Current 0.88/0.63 A 0.42/0.31 A
Locked Current 2/2.01 A 1/1.01 A
Speed 2850/3400 RPM 2850/3400 RPM
Maximum Air Flow 11/13 m3/min. 11/13 m3/min.
Maximum Air Flow 390/460 CFM 390/460 CFM
Maximum Pressure 20/27 mmH2O 20/27 mmH2O
Maximum Pressure 0.78/1.06 InchH2O 0.78/1.06 InchH2O
Noise 54/59 dB 54/59 dB
Weights 2.2 kg 2.2 kg
SAFETY APPROVAL
